QUARRY HUNSLET 0-4-0ST

As soon as we had a chance to run Dolgoch last March we realised that the design brief for this small locomotive had produced an almost perfect balance of performance and duration and, having instinctively avoided some of the smaller designs, the possibilities for new engines were now numerous.  With Talyllyn No.1 designed and signed off we immediately re-drew our 7/8ths” Quarry Hunslet as a 16mm model, a design whose characteristics will be much the same as the TR models and should prove to be a real crowd-pleaser.

By the mid-19th century, the North Wales slate mines and quarries had a requirement for small, powerful and rugged locos to work the galleries and tramways in what was by then a rapidly expanding industry.  Various manufacturers supplied narrow gauge motive power to these businesses but none became more synonymous with the area than the saddle tanks supplied by the Hunslet Engine Co. of Leeds.  These sturdy little locos were ideal for the roughly laid, temporary lines in the quarries and the class evolved from the first design, produced in 1870, to encompass a variety of sizes and types which found work at Penrhyn, Dinorwic (where many acquired the names of racehorses!) and the Nantlle valley.  Remarkably the majority of those locos still in service in the 1960′s survived to be preserved, some of them in America and Canada.  Today Quarry Hunslets are still being produced in limited numbers by the new Hunslet Engine Co. based at the Statfold Barn Railway.

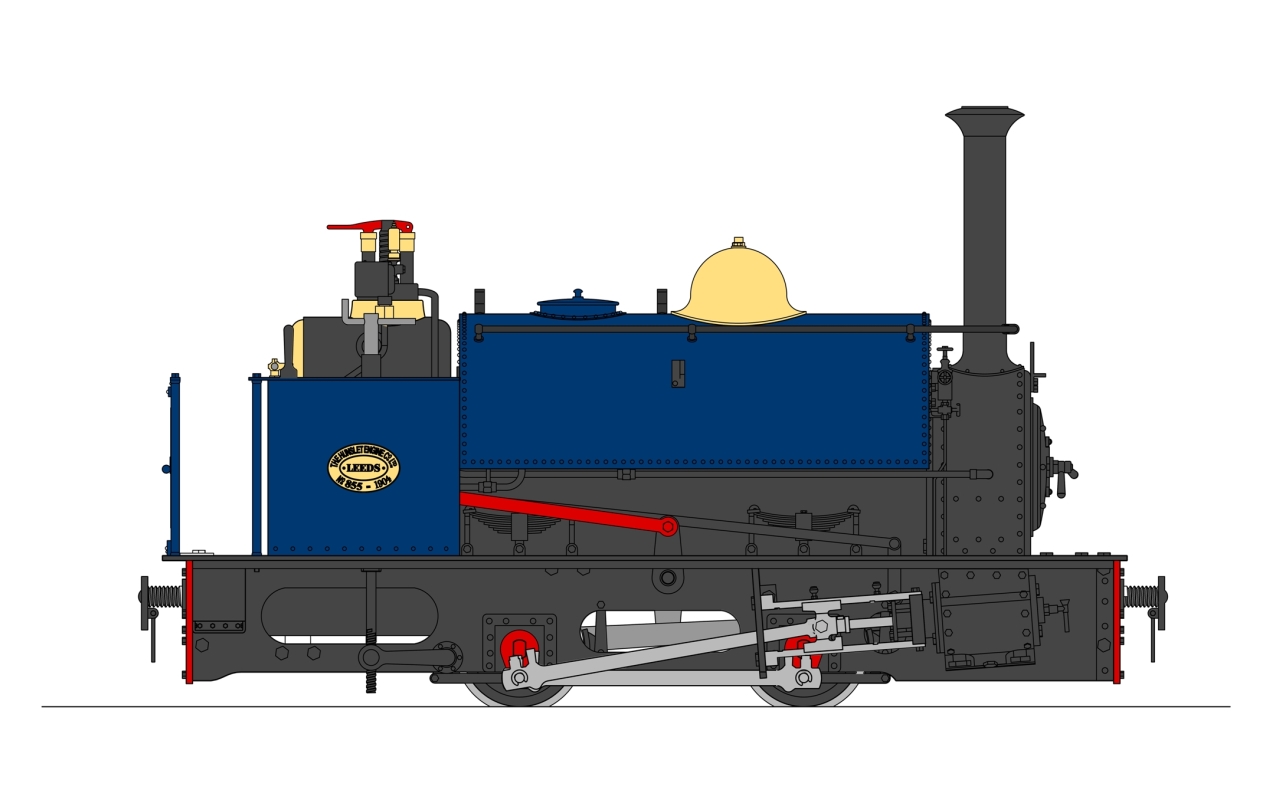

The more generous proportions of the ‘Large’ type Quarry Hunslets (as opposed to the smaller ‘Alice’ Class) will prove beneficial to the locomotive’s run-time although to avoid compromising the look of the model we will only be offering it in 32mm gauge.  The model is gas-fired and fitted with a water top up valve, water check valve, miniature pressure gauge; constructed of stainless steel and etched brass with a copper boiler, the model will, as usual, be covered by our two-year warranty.  The anticipated UK RRP is £1595.00 (subject to the usual provisos), available Q4 2020.  As ever, we’d like to thank David Fletcher for his superb drawings, illustrating the livery options. In response to customer requests, we will be supplying the model with two chimneys (both of which will be included), the factory original pattern and the Penrhyn Quarry type.

Specifications:

  • Scale: 16mm to 1 foot (1:19)
  • Gauge: 32mm only
  • Length: 230mm
  • Width: 88mm
  • Height: 130mm
  • Boiler: Centre Flue
  • Working Pressure: 60psi
  • Weight: TBA
  • Minimum Radius: 600mm (2 feet)
  • Reversing Gear: Piston type, reverse by lever in the cab
  • Valve Gear: Simulated Stephenson’s link
  • Fuel: Butane Gas
  • Boiler Fittings: Safety valve, miniature pressure gauge, water level check valve
  • Cab Controls: Steam regulator, gas regulator, reverse lever, lubricator, under floor water level check valve

Colours available, subject to production batch:

S19-37A Quarry Hunslet 0-4-0ST in Red
S19-37B Quarry Hunslet 0-4-0ST in Black
S19-37C Quarry Hunslet 0-4-0ST in Penrhyn Lined Black
S19-37D Quarry Hunslet 0-4-0ST in Blue

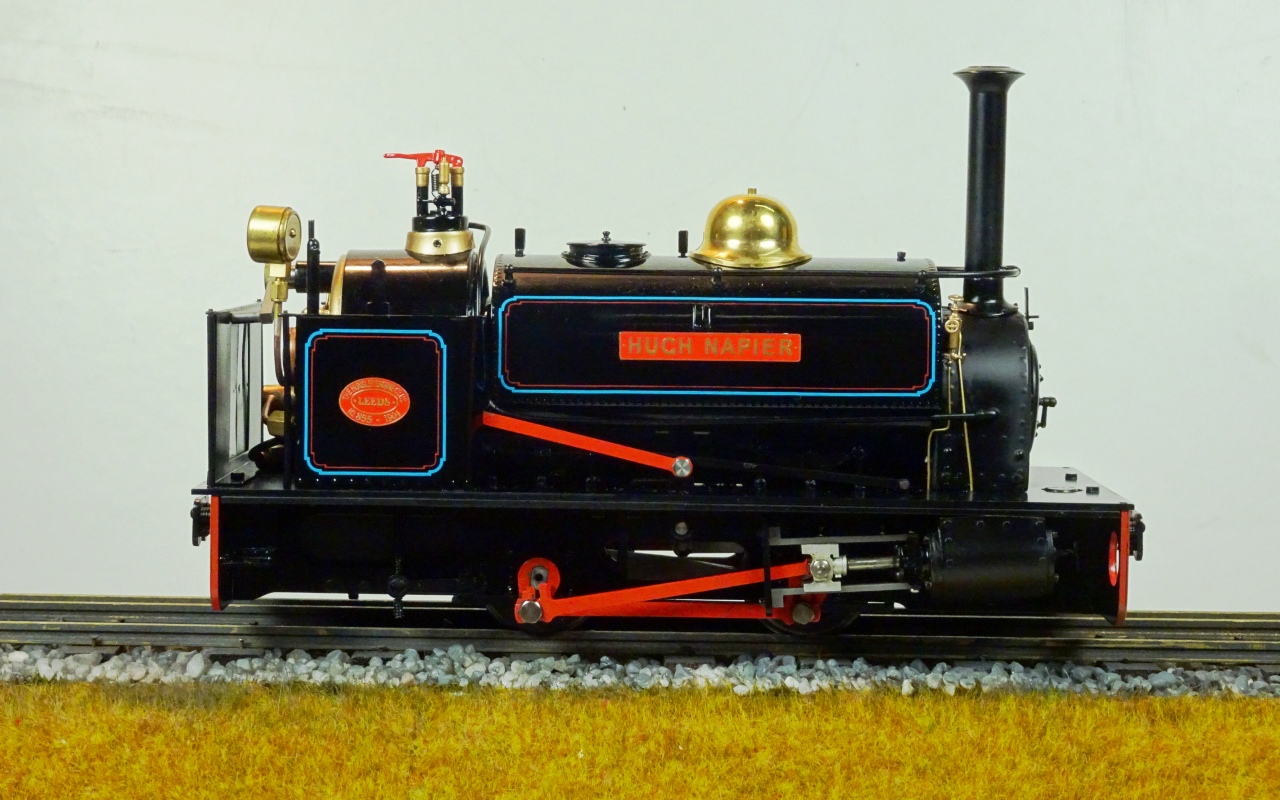

Production sample illustrated – maybe subject to change
