For the opening of the Peel Line in 1873, the Isle of Man Railway included in its initial stock purchase from the Metropolitan Carriage & Wagon Co, four hand-braked covered goods vans with load 6 tons and central double-doors to each side. The covered vans were allocated the stock letter “G” when a revised identity system was introduced by the Railway after 1876. Two additional vans (G.5 & G.6) were supplied new by the Ashbury Carriage & Wagon Co in 1877, a single van (G.7) was believed built by the Railway itself in 1897 using spares and parts supplied by Metropolitan, followed by two further examples (G.8 & G.9) supplied new by Metropolitan in 1899, all to the same basic early-type design. Van G.1 is extant and currently stored out-of-use on the Railway. The remaining early-type “G” vans were in use until the 1960’s, but scrapped by 1975.
The Isle of Man Railway inherited four covered ventilated vans of a different design from the Manx Northern Railway in 1904 and built a further five longer-body examples itself between 1915 and 1921 using redundant chassis from original 4-wheel carriage stock.
Numbers G1, G3, G5, G8 available. Orders will be packed randomly with no two the same unless more than four are ordered. Based on the very accurate Ashbury chassis first developed for the two plank IoM ‘M’ wagons these vans include spoked wheels and scale couplings to give a very accurate prototypical model.
The designed minimum radius using the scale couplings is 2 foot 6 inches, however the vans are designed to easily take standard Accucraft chopper couplings for anyone running on a 2 foot radius. As they come out of the box the couplings are at the scale IoM height, and additionally a small drop plate is included in the box for anyone wanting to have the couplings at the lower 16mm scale height. Additionally this G van without portholes is being made in plain grey ‘data only’ for anyone who wants it for non Isle of Man purposes. Body length is 217.5mm, overall maximum width over the handles107mm, height 134.5mm

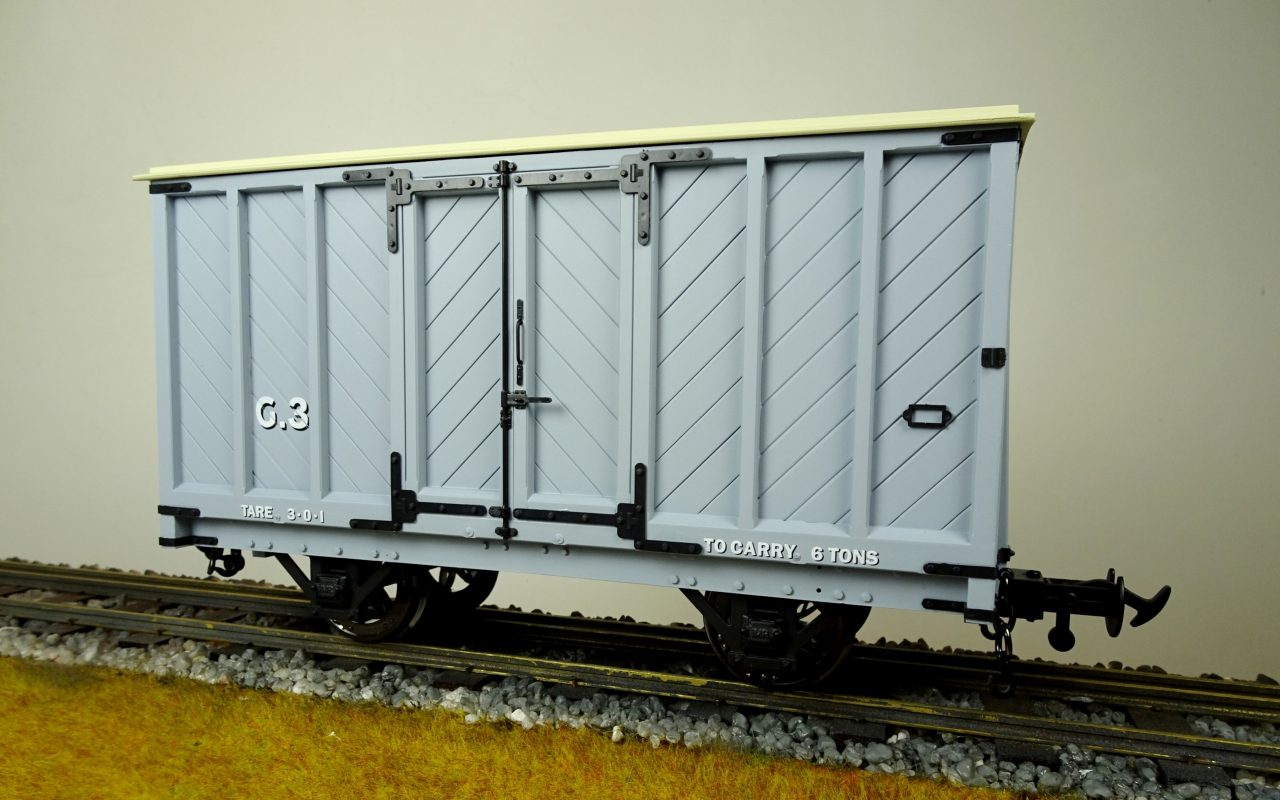

- R20-3A – Isle of Man ‘G’ Van unvented in light grey, numbers G2 & G3
- R20-3B – Isle of Man ‘G’ Van unvented in light grey, numbers G1 & G8

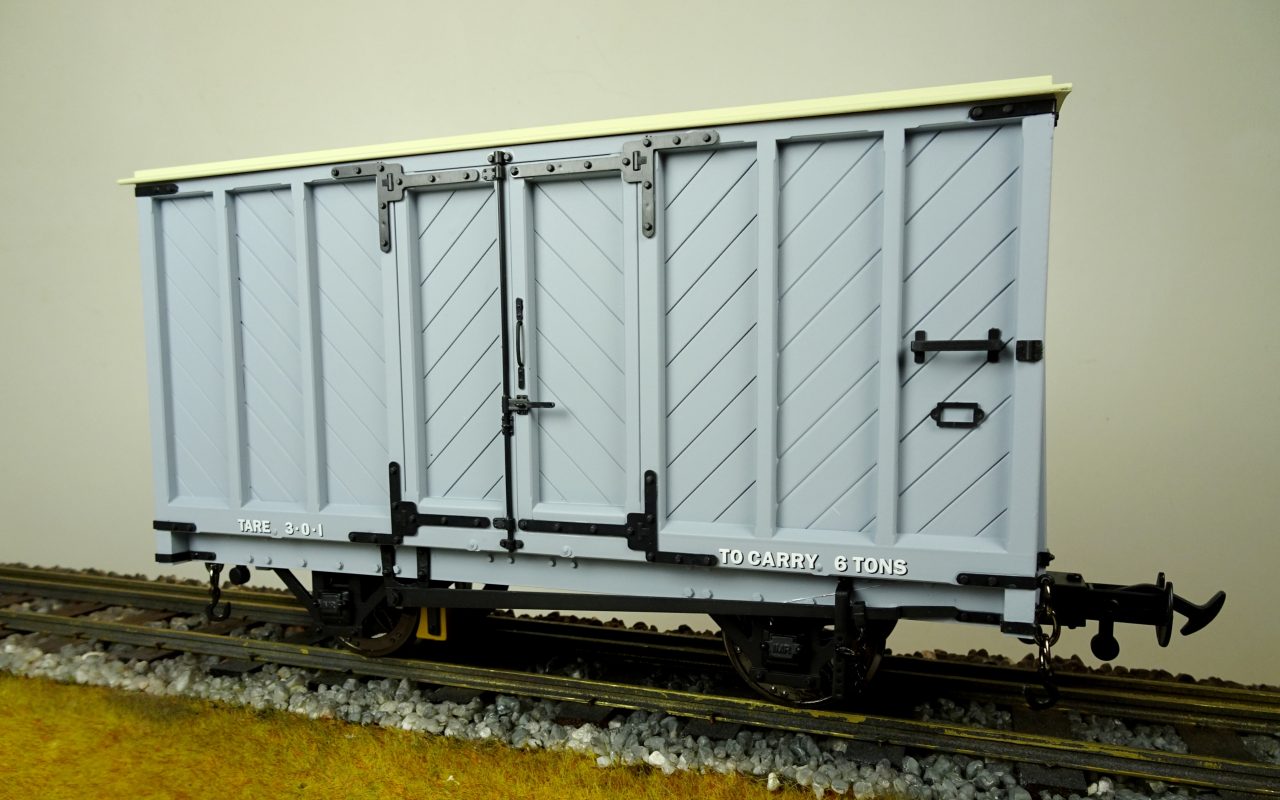

- R20-3C – Isle of Man ‘G’ Van unvented in light grey, data only
